Additional information
| Weight | 42 kg |
|---|---|
| Dimensions | 12 × 42 × 12 cm |

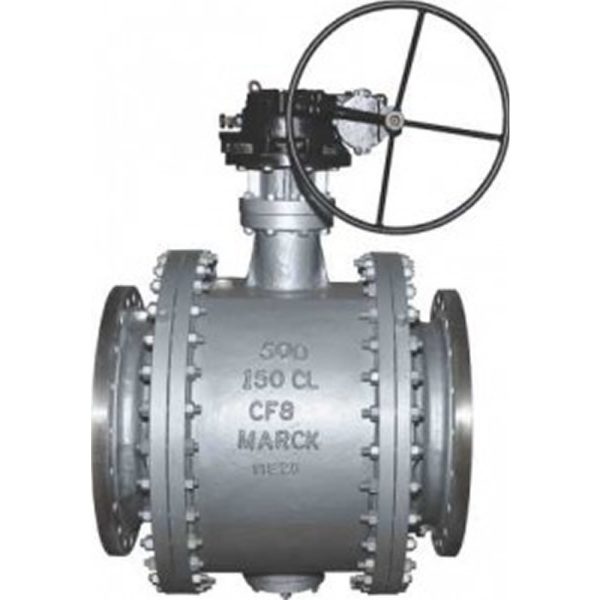

150#THREE PIECE DESIGN F/E FULL BORE BALL VALVE WCB / SS 304 / SS 316
| BODY | ASTM A 216 Gr WCB | ASTM A 351 Gr CF8 | CF8M | CF3 | CF3M |
| BALL | ASTM A 351 Gr CF8 | CF8M |
| MFG STD | AS PER API 6D |
| INSP & TEST STD | API 6D |
| FACE TO FACE | AS PER API 6D |
| ENDS | FLANGED END TO ASME B 16.5 RF |
| OPERATION | MANUAL | GEAR | ACTUATED |
| HYD-TEST PRESSURE | BODY : 450 Psig |
| SEAT : 315 Psig | |
| PNEUMATIC TEST PRESSURE : | SEAT : 80 Psig |
| SIZE RANGE | 40 MM TO 300 MM |
