Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 42 × 12 × 421 cm |

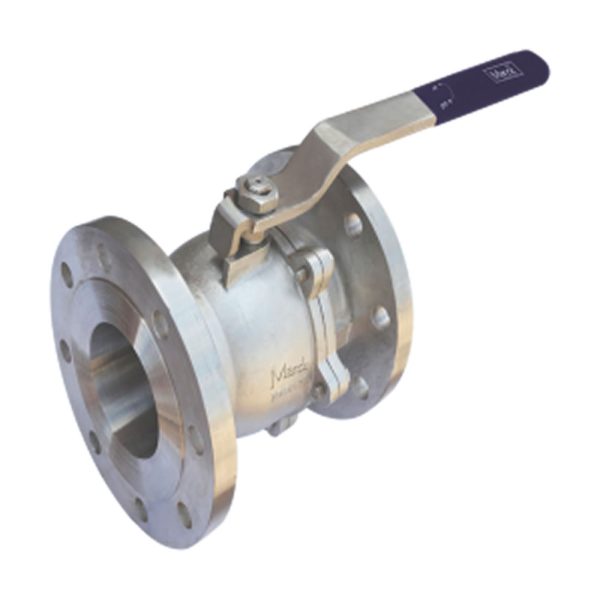

2 PIECE DESIGN FLOATING BALL FULL /REDUCE PORT BALL VALVE CLASS 150/300
| BODY | ASTM A 351 Gr CF8 |
| BALL | AISI 304 | ASTM A 351 Gr CF8 |
| STEM | AISI 304 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 | ISO 17292 |
| TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 (150#/300#) |
| HYD-TEST PRESSURE | BODY : 1100 Psig (77 Kg/Cm ²) (150#) |
| PNEUMATIC TEST PRESSURE : | SEAT : 100 Psig (7 Kg/Cm ²) |
| SIZE RANGE | 15 MM TO 600 MM |
