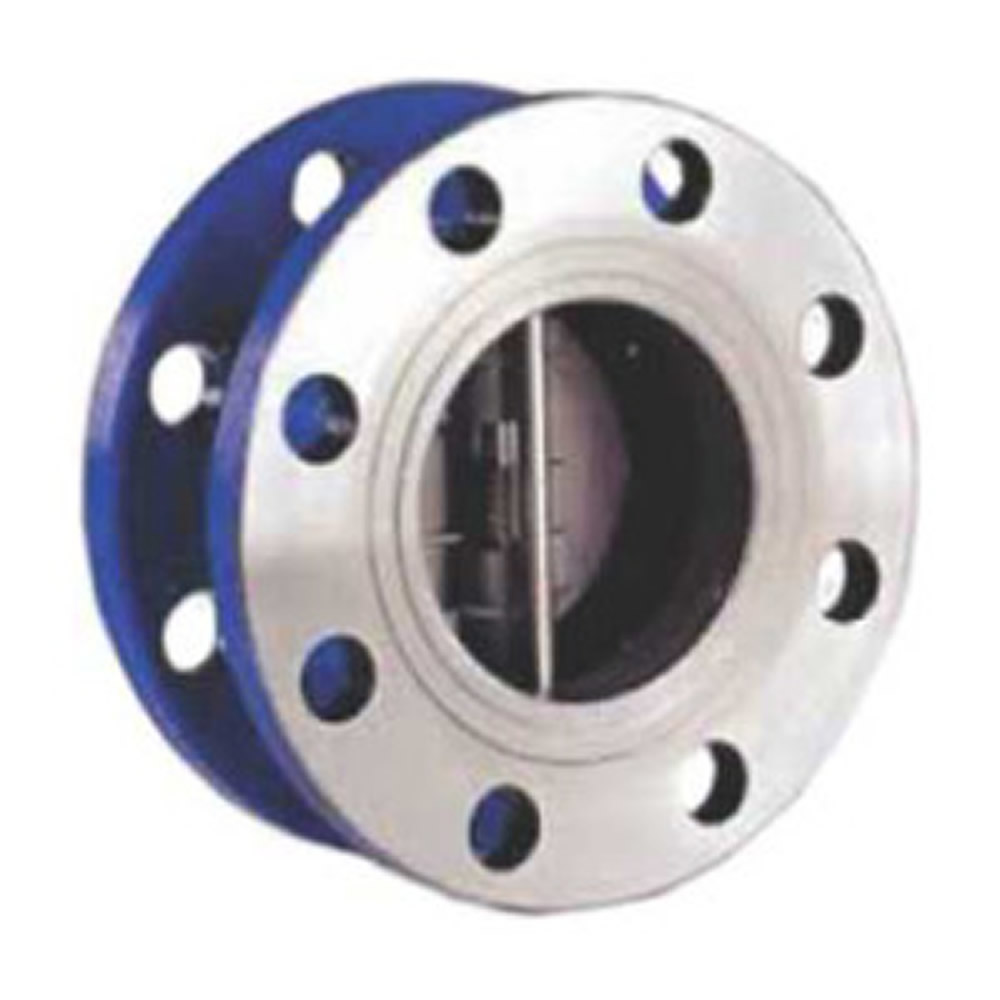

DUAL PLATE DOUBLE FLANGED CHECK VALVE

BODY	ASTM A 216 Gr WCB \| WC1 \| WC6 \| WC9 \| LCB
CLOSURE PLATE (DISC)	SS 304 \| SS 316
HING PIN	AISI 304 \| AISI 316
STOP PIN	AISI 304 \| AISI 316
SPRING	STAINLESS STEEL
SEAT	EPDM
MFG STD	GENERALLY CONFORMING TO API 6D \| API 594
INSP & TEST STD	GENERALLY CONFORMING TO API 6D \| API 598
ENDS	FLANGE END TO ASME B16.5 RF (150#)
HYD-TEST PRESSURE	BODY : 425 Psig (30 Kg/Cm ²)
	SEAT : 300 Psig (21 Kg/Cm ²)
SIZE RANGE	50 MM TO 1000 MM

Category: Check Valves Tag: Check Valves

Additional information

Weight	124 kg
Dimensions	21 × 42 × 12 cm
