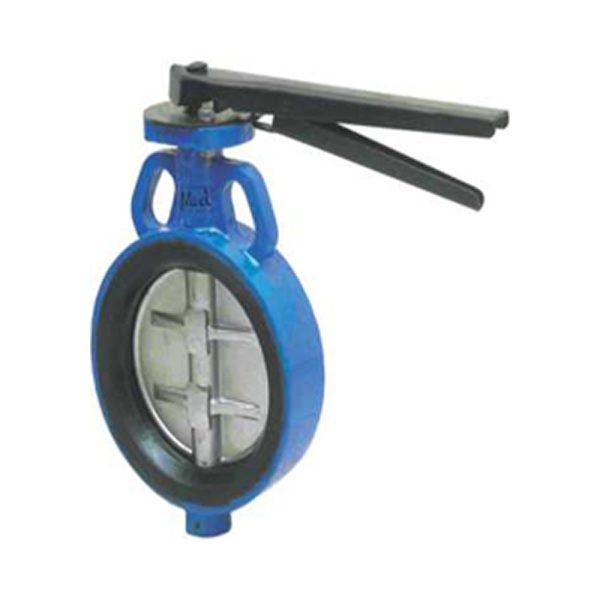

“ECOTECH” SERIES CENTRIC DISC DESIGN BUTTERFLY VALVE

BODY	IS 210 Gr FG 200 \| 220 \| WCB \| CF8 \| CF8M
DISC	S.G.IRON \| SS 304
SEAT	MOULDED NEOPRENE \| NITRILE \| EPDM \| HYPLON \| VITON
MFG STD	BS 5155 \| IS 13095
INSP & TEST STD	BS 6755
SHAFT	AISI 410 \| AISI 304
ENDS	WAFER TYPE TO SUIT ASME B 16.5
OPERATION	FLOW -CONTROL LEVER \| GEAR \| PNEUMATIC \| OPERATED \| ELECTRICAL \| ACTUATED
HYD-TEST PRESSURE	BODY : 225 Psig (16 Kg/Cm ²)
	SEAT : 165 Psig (11.5 Kg/Cm ²)
SIZE RANGE	40 MM TO 1500 MM
