Additional information
| Weight | 52 kg |
|---|---|
| Dimensions | 123 × 42 × 112 cm |

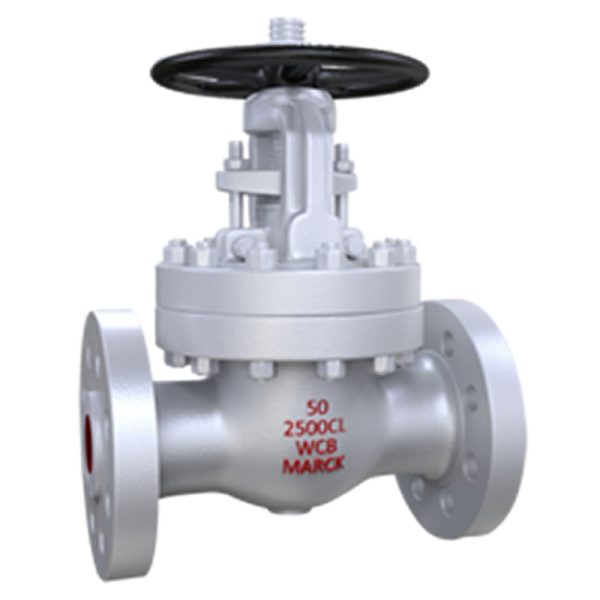

GATE VALVE CLASS 2500 BOLTED BONNET
| BODY | BONNET | ASTM A 216 Gr WCB | WC1 | WC6 | WC9 | LCB |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | API 600 |
| INSP & TEST STD | API 598 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 9275 Psig (652 Kg/Cm ²) |
| SEAT : 6790 Psig (477 Kg/Cm ²) | |
| SIZE RANGE | 50 MM TO 600MM |
