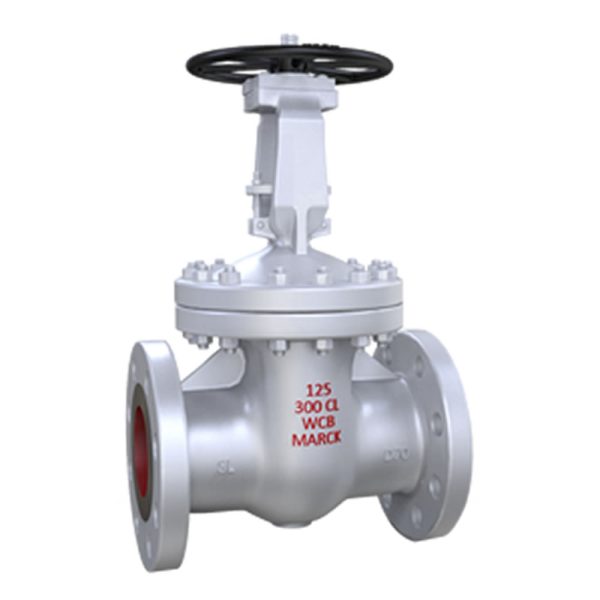

GATE VALVE CLASS 300 BOLTED BONNET

BODY \| BONNET	ASTM A 216 Gr WCB \| WC1 \| WC6 \| WC9 \| LCB
TRIMS	13 Cr \| 18 Cr 8 Ni
MFG STD	API 600
INSP & TEST STD	API 598
ENDS	FLANGED TO ASME B 16.5 RF
OPERATION	MANUAL \| GEAR \| ELECTRICAL ACTUATED
HYD-TEST PRESSURE	BODY : 1100 Psig (77 Kg/Cm ²)
	SEAT : 800 Psig (56 Kg/Cm ²)
SIZE RANGE	25 MM TO 1000 MM
