Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 42 × 12 × 42 cm |

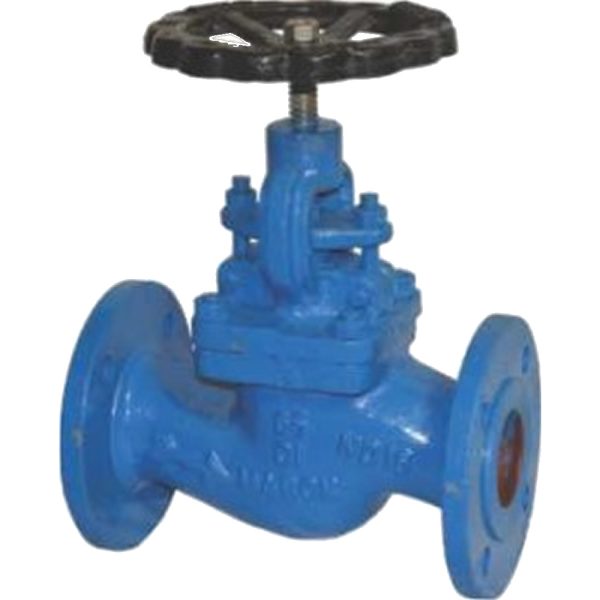

GLOBE VALVE PN 10/PN 16 RATING BOLTED BONNET
| BODY | BONNET | IS 210 Gr FG 200 | 220 |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | GENERALLY CONFORMING TO BS 1873 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO DIN 2533 2532 FOR PN 10 |
| FLANGED TO DIN 2533 FOR PN 16 | |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 213 Psig (15 Kg/Cm ²) |
| SEAT : 142 Psig (10 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 250 MM |
