Additional information
| Weight | 25 kg |
|---|---|
| Dimensions | 12 × 42 × 12 cm |

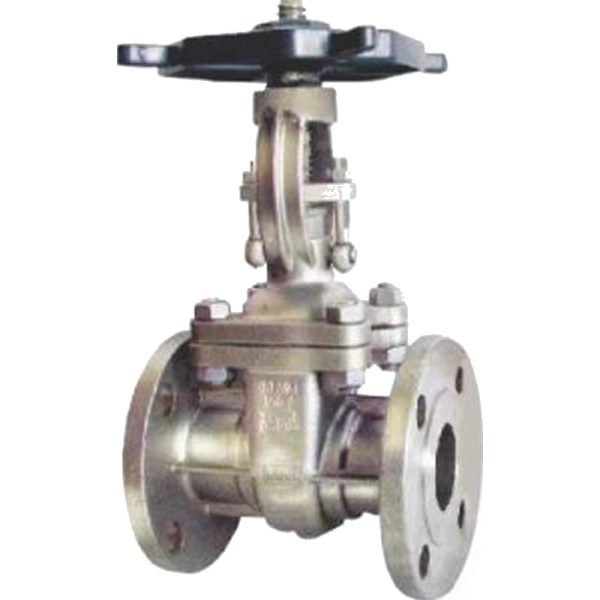

INVESTMENT CASTING GATE VALVE CLASS 150 BOLTED BONNET
| BODY | BONNET | ASTM A 216 Gr WCB | CF8 | CF8M | CF3 | CF3M |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | API 600 |
| INSP & TEST STD | API 598 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 25 MM TO 300 MM |
