Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 4 × 2 × 1 cm |

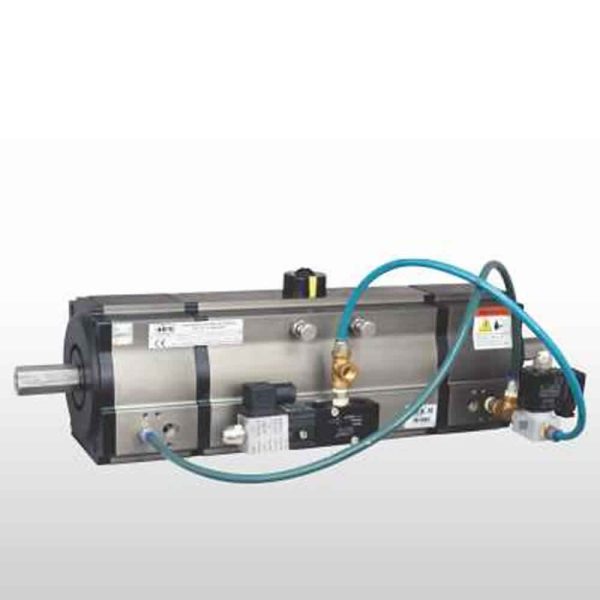

Pneumatic Rotary Actuator 3 Position Actuator
METHOD OF TRANSMISSION
RACK AND PINION TYPE
ACTUATION
3 Position
BODY
EXTRUDED ALUMINIUM HARD ANODIZED
CAPS AND RACK
ALUMINIUM PRESSURE DIE CAST
PINION
EN 8
SEALS
BUNA – N
AIR PRESSURE
NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE: 8KG/CM²
ACTUATOR DESIGN
ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION
90° – QUARTER TURN
TORQUE
UP TO 1777 NM
