Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 4 × 2 × 1 cm |

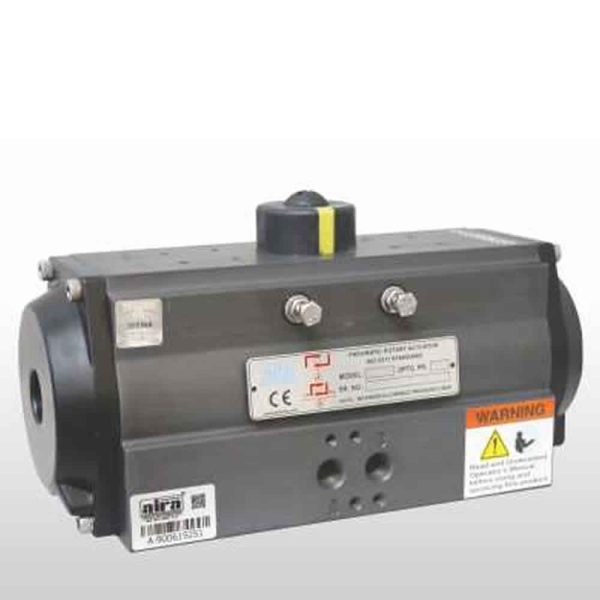

Pneumatic Rotary Actuator Double Acting As Per ISO 5211
METHOD OF TRANSMISSION
RACK AND PINION TYPE
ACTUATION
DOUBLE ACTING
BODY
EXTRUDED ALUMINIUM HARD ANODIZED
CAPS AND RACK
ALUMINIUM PRESSURE DIE CAST
PINION
EN 8
SEALS
BUNA – N / Viton
AIR PRESSURE
NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE: 8KG/CM²
ACTUATOR DESIGN
ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION
90° / 180° ROTATION
a
METHOD OF TRANSMISSION
RACK AND PINION TYPE
ACTUATION
DOUBLE ACTING
BODY
EXTRUDED ALUMINIUM HARD ANODIZED
CAPS AND RACK
ALUMINIUM PRESSURE DIE CAST
PINION
EN 8
SEALS
BUNA – N / Viton
AIR PRESSURE
NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE: 8KG/CM²
ACTUATOR DESIGN
ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION
90° / 180° ROTATION
TORQUE
UP TO 13673 NM
TORQUE
UP TO 13673 NM
