Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 4 × 2 × 1 cm |

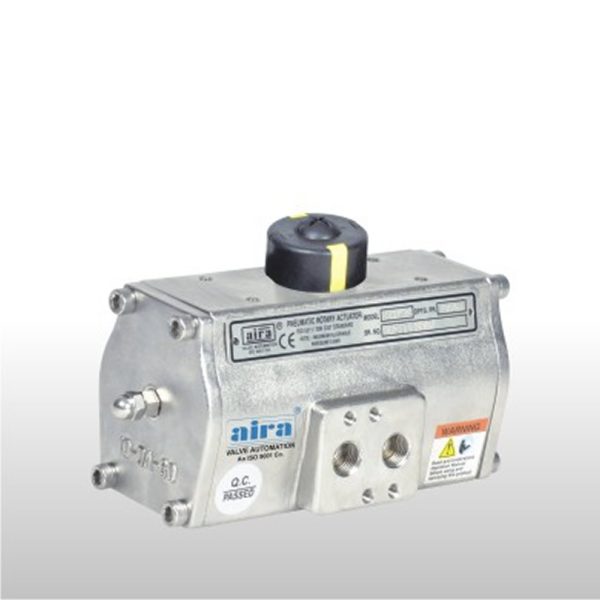

Pneumatic Rotary Actuator Stainless Steel 304
METHOD OF TRANSMISSION
RACK AND PINION TYPE
ACTUATION
DOUBLE ACTING / SINGLE ACTING
BODY
IC CF8 / CF8M
CAPS AND RACK
IC CF8 / CF8M
PINION
AISI S.S.304 / S.S.316
SEALS
BUNA – N / VITON
AIR PRESSURE
NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE: 8KG/CM²
ACTUATOR DESIGN
ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION
90° – QUARTER TURN
TORQUE
UP TO 1069 NM
