Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 4 × 2 × 1 cm |

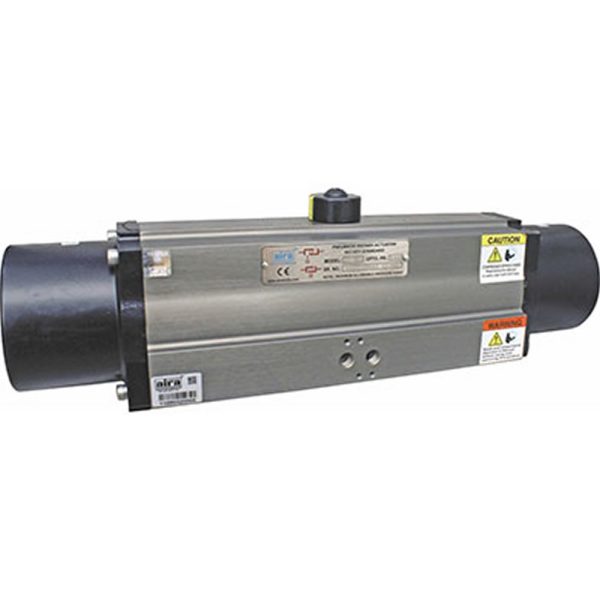

Pneumatic Rotary Single Acting Actuator 180 Degree Rotate
METHOD OF TRANSMISSION
RACK AND PINION TYPE
ACTUATION
SINGLE ACTING
BODY
EXTRUDED ALUMINIUM HARD ANODIZED
CAPS AND RACK
ALUMINIUM PRESSURE DIE CAST
PINION
EN 8
SEALS
NITRILE
AIR PRESSURE
NORMAL AIR SUPPLY PRESSURE: 3KG/CM² MAX, AIR SUPPLY PRESSURE: 8KG/CM²
ACTUATOR DESIGN
ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION
180° ROTATION
TORQUE
UP TO 253 NM
